Spline Drive Caps

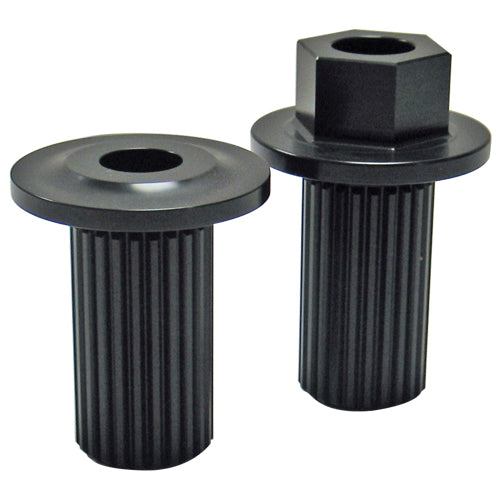

Our spline drive caps are available in a long and short version to provide the right amount of mandrel for the pulley stack you need. The caps are available with a large nut to assist in turning over the motor or a smooth top to give the most clearance for tight areas.
Features
- 6061 T6 billet aluminum
- Hard coat anodizing
- Smooth cap or cap with nut.
- Works with all Peterson Spline Drive components
- Available in short and long.
Specifications
Smooth Cap
Overall Height: .887"
Diameter: 2.200"
Nut Cap
Overall Height: 1.602"
Hex Height:.780"
Hex Width:1.250"
Diameter: 2.200"
Part Numbers
Short
| Part # | Description |
|---|---|
| Smooth Cap | |
| 06-0726 | 2.250 OD |
| 06-0727 | 2.750 OD |
| 06-0728 | 3.250 OD |
| 06-0729 | 3.500 OD |
| Nut Cap | |
| 06-0730 | 2.250 OD |
| 06-0731 | 2.750 OD |
| 06-0732 | 3.250 OD |
| 06-0733 | 3.500 OD |
Long
| Part # | Description |
|---|---|
| Smooth Cap | |
| 06-0770 | 2.250 OD |
| 06-0771 | 2.750 OD |
| 06-0772 | 3.250 OD |
| 06-0773 | 3.500 OD |
| Nut Cap | |
| 06-0760 | 2.250 OD |
| 06-0761 | 2.750 OD |
| 06-0762 | 3.250 OD |
| 06-0763 | 3.500 OD |
Accessories
Hub and Cap Guide Washers
| Part # | Description |
|---|---|
| 06-0711 | 2.250 dia fits 18-21 HTD and 14-17 Gilmer |
| 06-0712 | 2.750 dia fits 22-25 HTD and 18-21 Gilmer |
| 06-0713 | 3.250 dia fits 24-26 Gilmer |
| 06-0714 | 3.500 dia fits 33 HTD |
