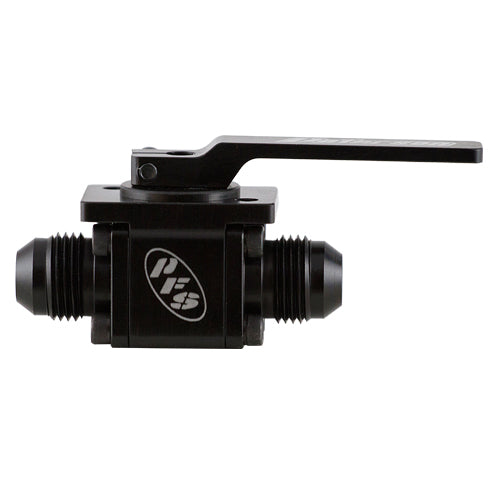

Ball Valves - Small Body
Peterson Fluid Systems has produced the best ball valve for racing applications available today. Produced from aircraft quality aluminium, these valves utilise hard coated aluminium balls and bodies along with fluoropolymer seals. Available in several combinations, these valves make fuel and oil shut off easy with full flow when opened.
Features
- All Aluminium construction for light weight
- Anodized for compatibility with most fluids
- PTFE seals
- Fully rebuildable
- CNC machined billet aluminium
Specifications
Standard
| Part # | Length | Width | Height |
|---|---|---|---|
| -6 AN | |||
| 09-0900 | 2.494" | 1.045" | 1.506" |
| 09-0901 | 3.300" | 1.045" | 1.506" |
| 09-0902 | 3.366" | 1.045" | 1.506" |
| 09-0903 | " | 1.045" | 1.506" |
| 09-0905 | 2.882" | 1.045" | 1.506" |
| -8 AN | |||
| 09-0920 | 2.700" | 1.045" | 1.506" |
| 09-0921 | 3.563" | 1.045" | 1.506" |
| 09-0922 | 3.336" | 1.045" | 1.506" |
| 09-0923 | 1.045" | 1.506" | |
| 09-0925 | 2.992" | 1.045" | 1.506" |
Panel Mount
| Part # | Length | Width | Height |
|---|---|---|---|
| -6 AN | |||
| 09-0910 | 2.494" | 1.045" | 1.631" |
| 09-0912 | 3.366" | 1.045" | 1.631" |
| -8 AN | |||
| 09-0930 | 2.700" | 1.045" | 1.631" |
| 09-0932 | 3.336" | 1.045" | 1.631" |
Part Numbers
Standard
| Part # | Description |
|---|---|
| -6 AN | |
| 09-0900 | -6 AN Male x -6 AN Male |
| 09-0901 | -6 AN Male x -6 AN Bulkhead |
| 09-0902 | -6 AN Push-On x -6 AN Push-On |
| 09-0903 | -6 AN Male x -6 AN Female |
| 09-0905 | -6 AN Male x -6 AN Port w/ Jam Nut |
| -8 AN | |
| 09-0920 | -8 AN Male x -8 AN Male |
| 09-0921 | -8 AN Male x -8 AN Bulkhead |
| 09-0922 | -8 AN Push-On x -8 AN Push-On |
| 09-0923 | -8 AN Male x -8 AN Female |
| 09-0925 | -8 AN Male x -8 AN Port w/ Jam Nut |
Panel Mount
| Part # | Description |
|---|---|
| -6 AN | |
| 09-0910 | -6 AN Male x -6 AN Male |
| 09-0912 | -6 Push-On Male x -6 Push-On |
| -8 AN | |
| 09-0930 | -8 AN Male x -8 AN Male |
| 09-0932 | -8 Push-On x -8 Push-On |
Accessories
Rebuild Kit
| Part # | Description |
|---|---|
| 09-0909 | Small Body Ball Valve Rebuild Kit |
